CE compliant – Regulation (EU) No. 305/2011
Standard: DIN EN ISO 13918 – Type FD
Available materials: Steel 4.8 / A2-50 / 1.4571
Cold-rolled thread: Tolerance 6g
Full thread: Thread extends to the welding tip

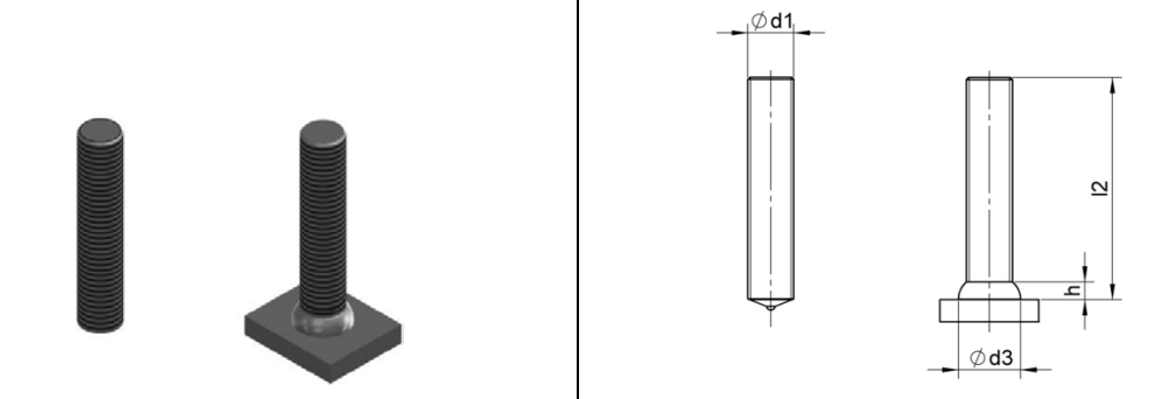

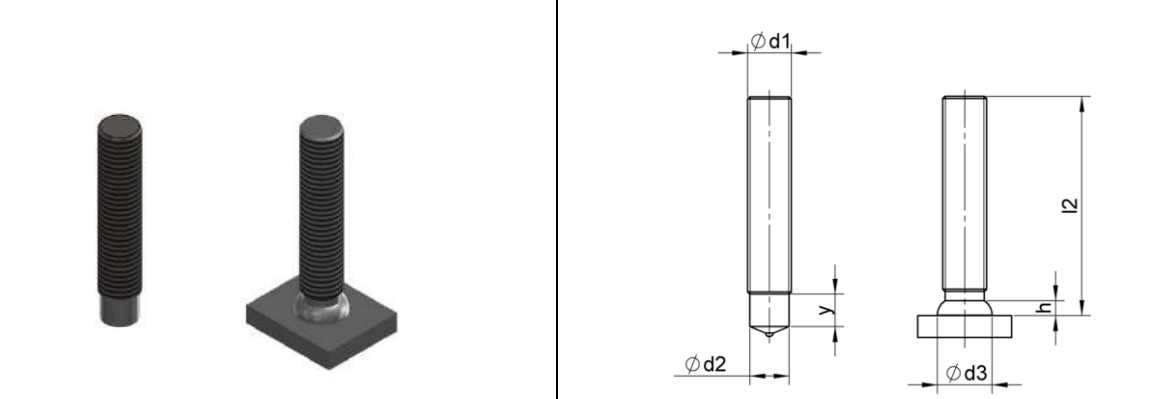

Product description – FD threaded stud
The BEARFIX® FD full-threaded stud is designed for drawn arc stud welding with ceramic ferrule and provides the maximum usable threaded length available in a weld stud.
The FD type is threaded down to the welding tip, so after welding the stud remains threaded almost to the weld bead itself. The weld bead diameter is approximately 3–4 mm larger than the external thread diameter, providing a strong and reliable joint.
The supplied ceramic ferrule protects the weld pool during welding, concentrating heat and reducing oxidation.
Main applications
- Fastening components where the nut must approach the base sheet
- Joints requiring thread almost to the weld
- Machinery and industrial equipment
- Sheet-metal fabrication and steel structures
- Stainless-steel applications
- Assemblies with limited installation space
- Automotive, marine and appliance industries
Technical advantages
- Full thread – maximum usable threaded length
- DIN EN ISO 13918 Type FD
- Cold-rolled thread – high mechanical strength and precision
- Excellent weldability – aluminium ball at the tip stabilises the arc
- Several materials – steel 4.8, A2-50 and 1.4571
- No steps or reductions – uniform geometry

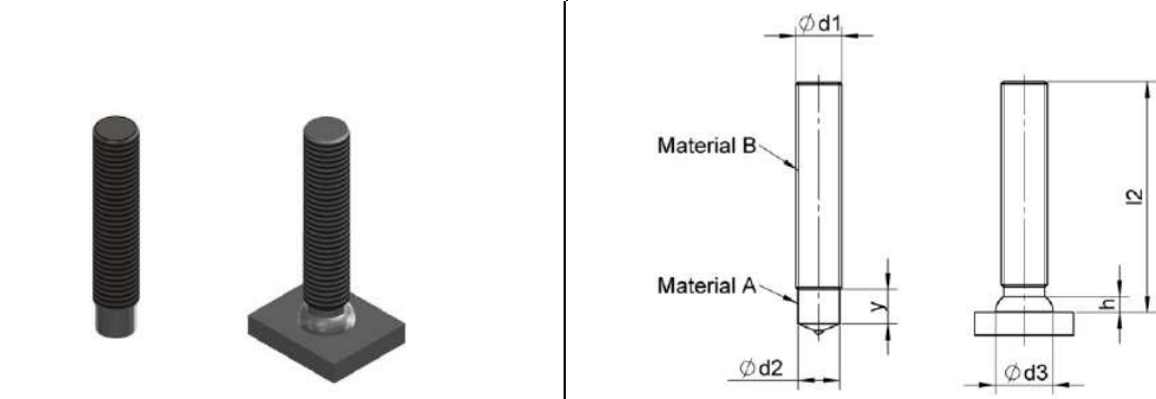

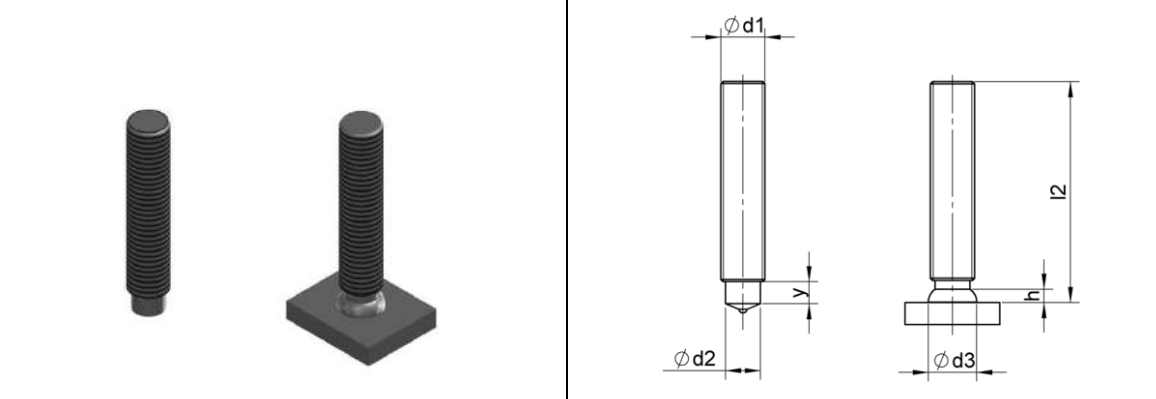

Standard dimensions
| Thread | l2 (mm) | d3 (mm)* | h (mm)* | Steel 4.8 | A2-50 | 1.4571 | Ceramic ferrule |
|---|---|---|---|---|---|---|---|
| M6 | 5–100 | 8.5 | 4 | 44-06-XXX | 54-06-XXX | 54-1-06-XXX | UF 6 |
| M8 | 5–100 | 11 | 4 | 44-08-XXX | 54-08-XXX | 54-1-08-XXX | UF 8 |
| M10 | 5–100 | 13 | 4 | 44-10-XXX | 54-10-XXX | 54-1-10-XXX | UF 10 |
| M12 | 20–100 | 16 | 5 | 44-12-XXX | 54-12-XXX | 54-1-12-XXX | UF 12 |
| M16 | 25–100 | 21 | 7 | 44-16-XXX | 54-16-XXX | 54-1-16-XXX | UF 16 |
| M20 | 30–100 | 26 | 7 | 44-20-XXX | 54-20-XXX | 54-1-20-XXX | UF 20 |
* d3 and h are approximate. ✔ Replace XXX with the required length. ✔ Other lengths and threads available on request.
Standards and certificates
- CE marking according to Regulation (EU) No. 305/2011
- DIN EN ISO 13918 – Type FD
- DIN EN ISO 14555 – Stud welding
- DIN EN 10204 inspection certificates on request
BEARFIX® – Fastening and welding solutions for structural engineering.
