CE compliant – Regulation (EU) No. 305/2011
Standard: DIN EN ISO 13918
Materials: Steel 4.8 / A2-50

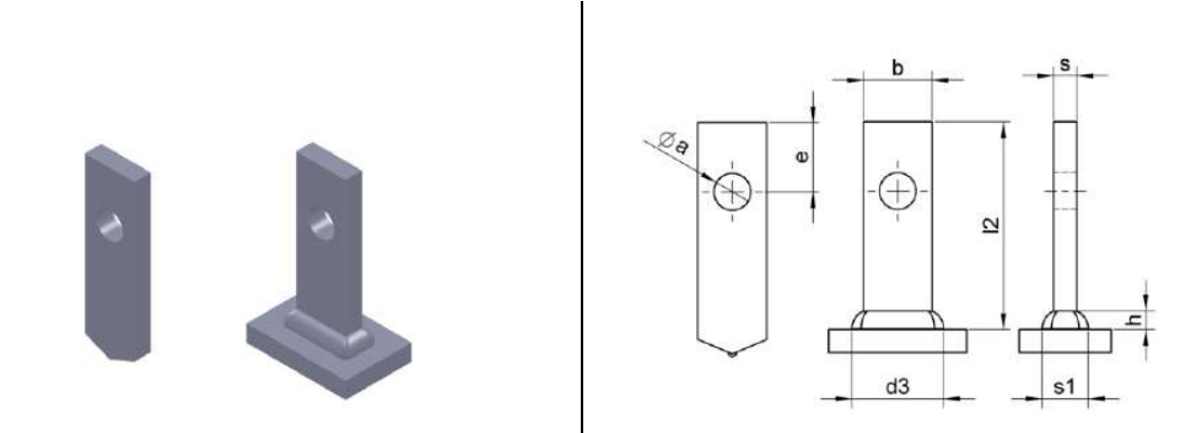

Design: Rectangular stud with additional holes for secondary fastening
Product description
The BEARFIX® Type B rectangular stud combines a welded rectangular base with additional holes for secondary mechanical fastening. It is designed for drawn arc stud welding with ceramic ferrule and allows screws, rivets or pins to be used after the main stud has been welded.
Main applications
Structural assemblies requiring a welded primary connection plus secondary mechanical fastening.
Technical advantages
- Designed for drawn arc stud welding with ceramic ferrule.
- Controlled geometry for repeatable industrial welding.
- Available in material configurations suitable for the intended environment.
- Special dimensions and variants can be supplied on request.
Standards and certificates
- CE marking according to Regulation (EU) No. 305/2011.
- DIN EN ISO 13918.
- DIN EN ISO 14555 – Stud welding.
- DIN EN 10204 inspection certificates on request.
Ordering information
When ordering, specify the required material, dimensions, geometry and quantity. Our technical team can help confirm the most suitable configuration for your application.
