BEARFIX® Ceramic Ferrules for Drawn Arc Stud Welding
CE compliant – Regulation (EU) No. 305/2011
Standard: DIN EN ISO 13918 – Ceramic ferrules
Application: Protection and control of the weld pool during drawn arc stud welding
Use: Normally single-use; removed after welding
What are ceramic ferrules?
BEARFIX® ceramic ferrules are consumable elements used in drawn arc stud welding. They surround the welding zone and help concentrate heat, retain molten metal and protect the weld pool from the atmosphere.
Correct ferrule selection is important because the internal geometry is matched to the stud type, welding position and application. After welding, most ferrules are removed by lightly breaking them away.

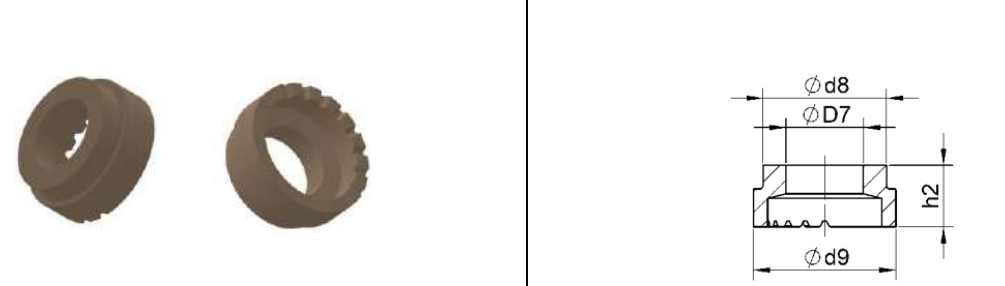

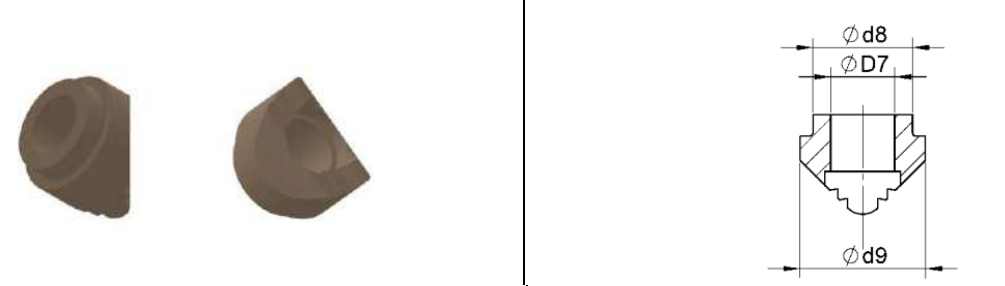

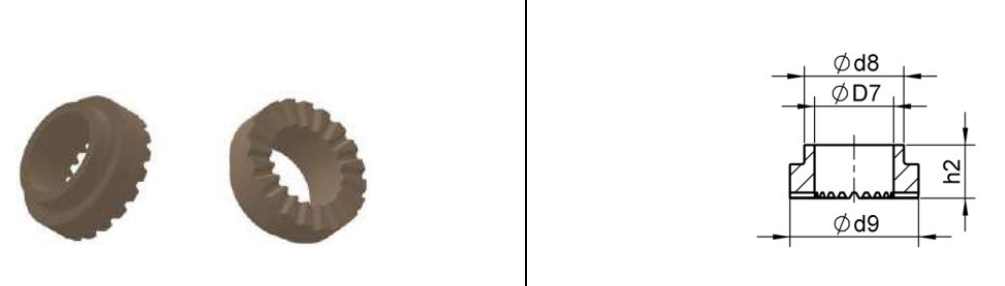

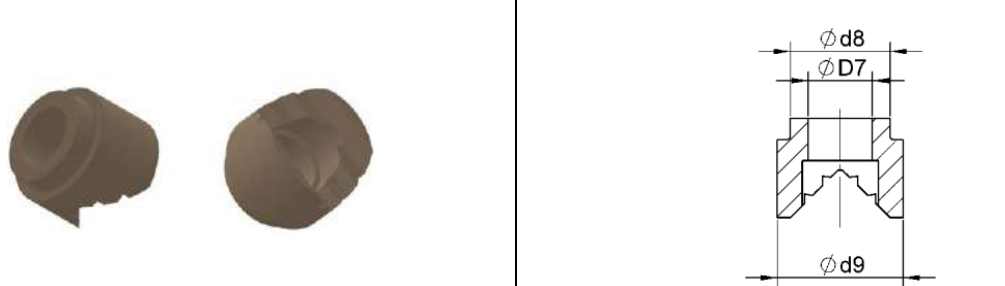

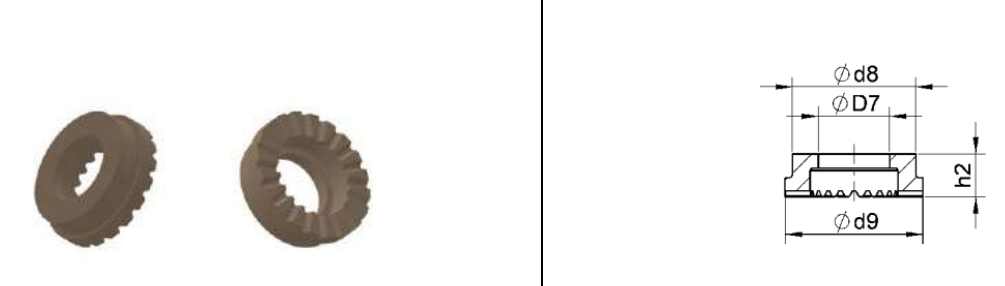

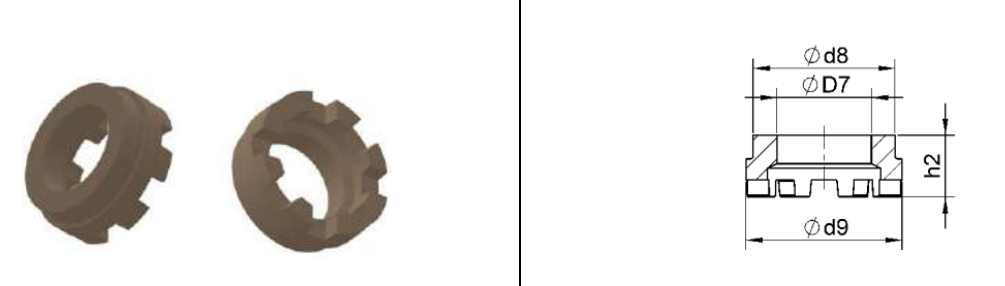

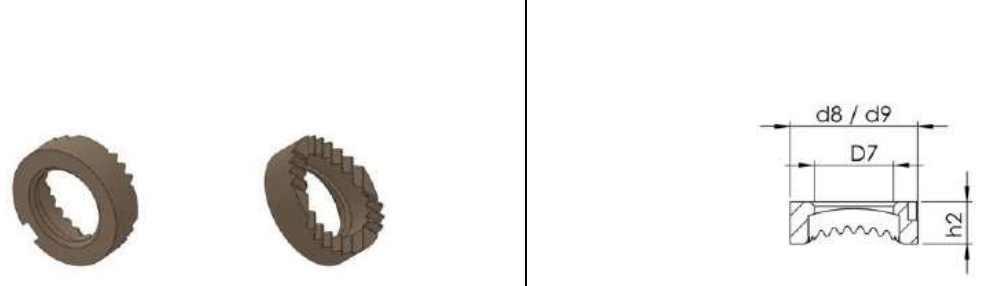

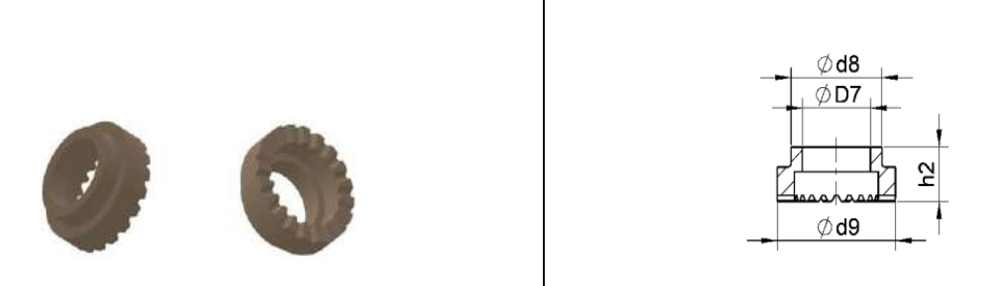

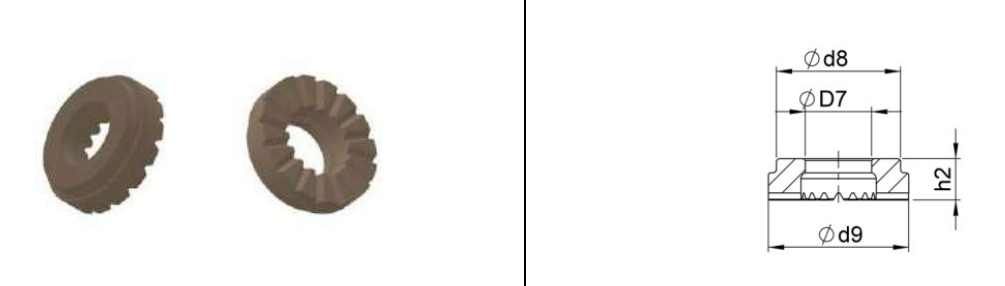

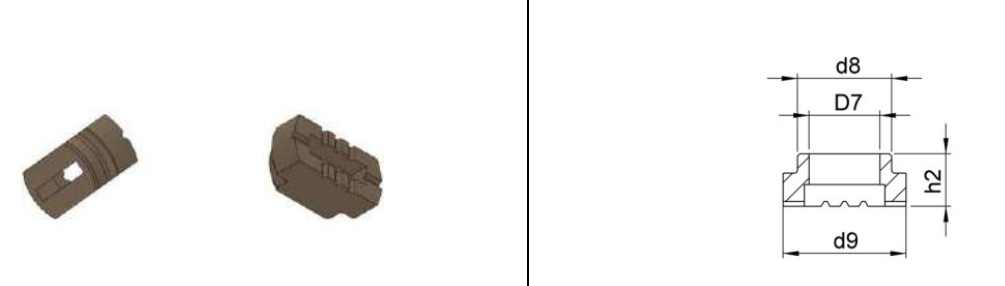

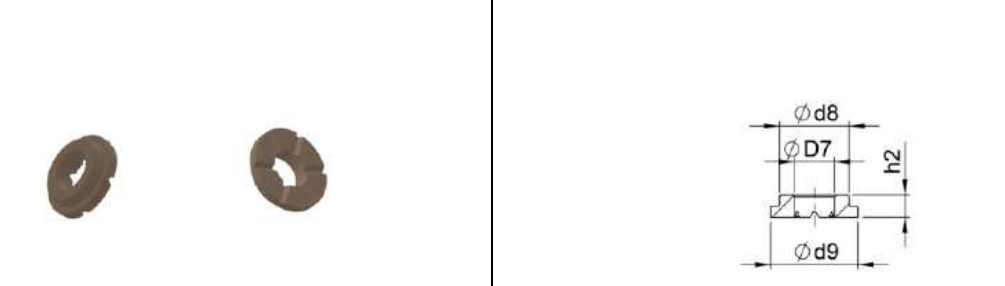

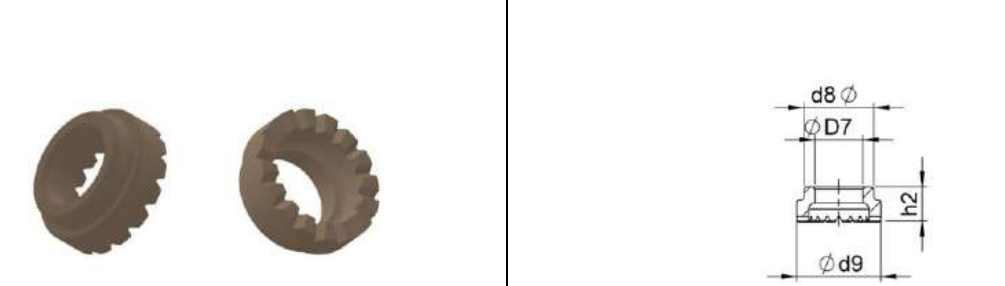

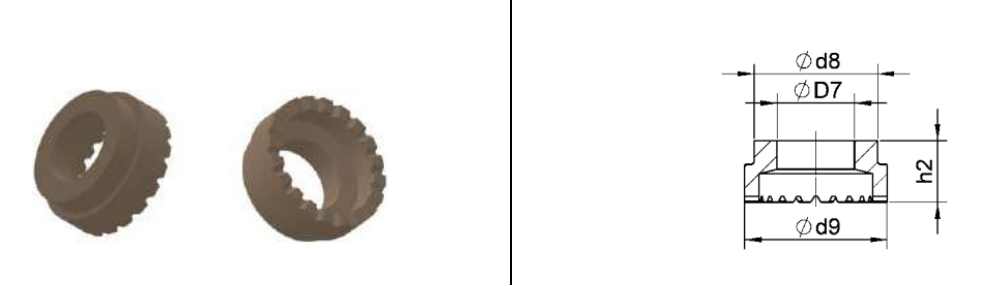

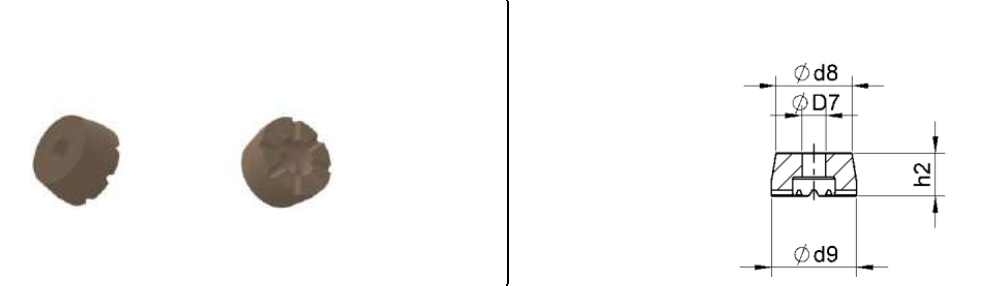

Available ceramic ferrule types
Main functions
- Concentrates heat in the welding zone.
- Helps retain the molten weld pool.
- Limits oxidation during welding.
- Shapes the weld bead around the stud.
- Supports repeatable weld quality.
Selecting the correct ferrule
The ferrule must match the stud type, diameter, welding position and application. Use the individual product pages or contact Bearfix for technical support.
