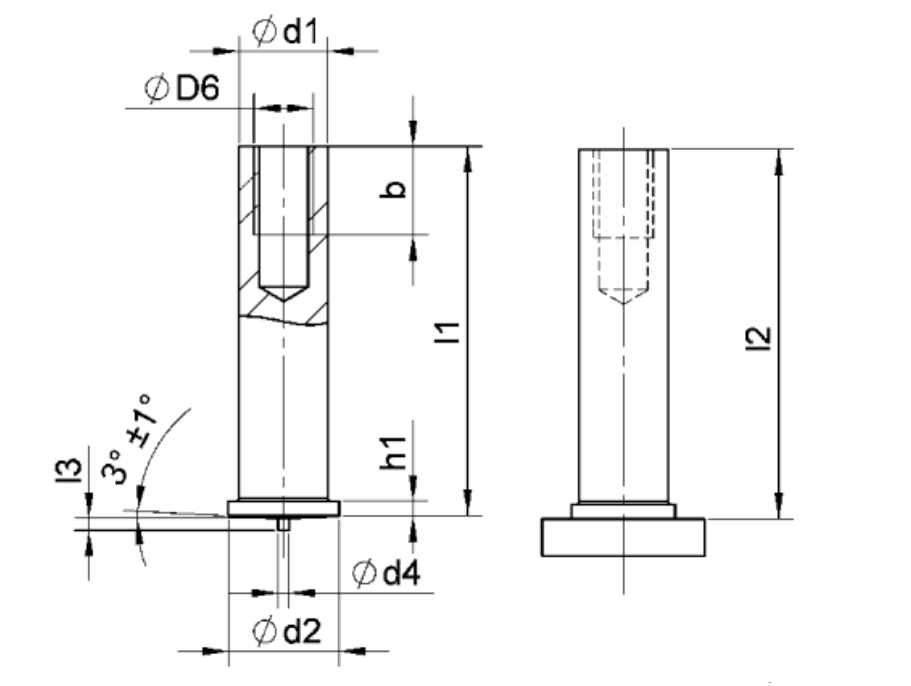

The IT CD6 stud is a bush or standoff with an internal thread, designed to be welded onto metal surfaces by capacitor discharge. Its design incorporates a calibrated ignition tip and a cold-formed flange to ensure a stable and uniform weld.
IT is the designation for an internally threaded stud according to DIN EN ISO 13918, while CD6 is the classification commonly used in capacitor discharge welding systems. Both terms refer to the same type of stud specifically prepared for CD processes.
Available materials
IT CD6 studs can be supplied in different materials according to the application and working conditions.
| Material | Features |
|---|---|
| Copper-plated 4.8 steel | Excellent weldability |
| A2-50 stainless steel | Corrosion resistance |
| 1.4571 stainless steel | Aggressive environments |
| AlMg3 aluminium | Lightweight applications |
| CuZn37 brass | Technical applications |
All materials comply with DIN EN ISO 13918 and DIN EN ISO 14555.
Steel models are generally supplied with an electrolytic copper coating to improve conductivity during welding and provide additional corrosion protection.
Available standard sizes
IT CD6 models are manufactured in several diameter and length configurations.
| Internal thread | Available length |
|---|---|
| M3 | 6 – 30 mm |
| M4 | 8 – 40 mm |
| M5 | 10 – 40 mm |
| M6 | 10 – 40 mm |
Special sizes and custom-made parts to drawing are available on request.
Bearfix solutions for IT CD6 studs
Bearfix supplies IT CD6 studs for capacitor discharge welding, as well as equipment, accessories and consumables for industrial applications requiring internally threaded fastenings on sheet metal.
We offer standard studs and custom-made parts to drawing in different materials and sizes, together with CD welding guns, chucks and specific components for this type of application. Our technical team can advise you on selecting the correct IT stud, welding parameters and compatibility with the base material.
You can also find our IT CD6 studs and consumables directly in the online store using the “Online store” button at the top right of the website.
