CE compliant – Regulation (EU) No. 305/2011
Standard: DIN EN ISO 13918
Materials: Steel 4.8 / A2-50

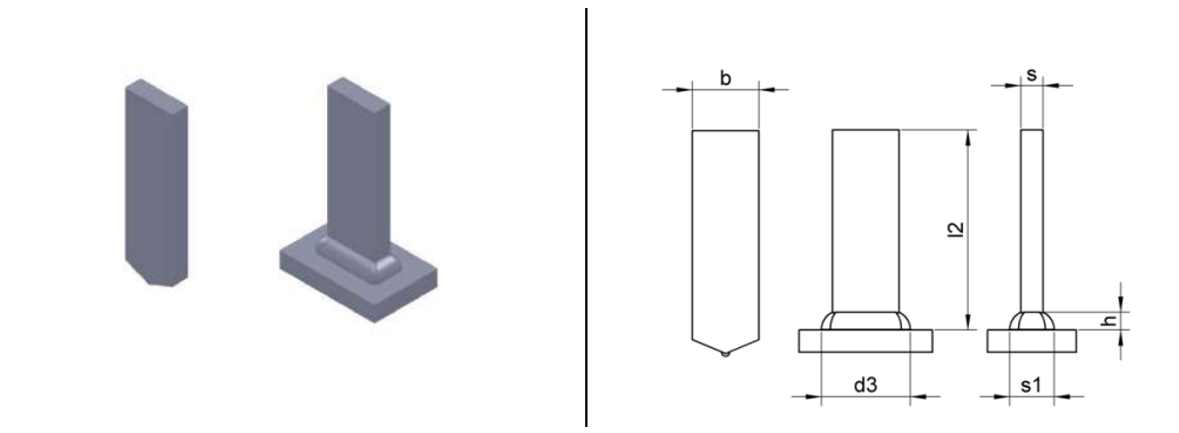

Design: Rectangular stud with different width and thickness combinations
Product description
The BEARFIX® Type A rectangular stud is designed for drawn arc stud welding with ceramic ferrule. Its rectangular section provides a larger contact geometry than a conventional round stud and is suitable for structural fastening, anchoring and connector applications on profiles, beams and sheet metal.
Main applications
Steel construction, structural anchoring, machinery, fabricated assemblies and applications requiring a rectangular welded connector.
Technical advantages
- Designed for drawn arc stud welding with ceramic ferrule.
- Controlled geometry for repeatable industrial welding.
- Available in material configurations suitable for the intended environment.
- Special dimensions and variants can be supplied on request.
Standards and certificates
- CE marking according to Regulation (EU) No. 305/2011.
- DIN EN ISO 13918.
- DIN EN ISO 14555 – Stud welding.
- DIN EN 10204 inspection certificates on request.
Ordering information
When ordering, specify the required material, dimensions, geometry and quantity. Our technical team can help confirm the most suitable configuration for your application.
