BEARFIX® Insulation Pins and Clips for Drawn Arc Welding
CE compliant – Regulation (EU) No. 305/2011
Standard: DIN EN ISO 13918
Materials: Copper-plated steel 4.8 / 1.4301 / 1.4541 / 1.4571 / 1.5415 (16Mo3)
Application: Fastening thermal and acoustic insulation to metal structures
Available insulation pins and clips
Access each product page to view its characteristics, dimensions and applications:

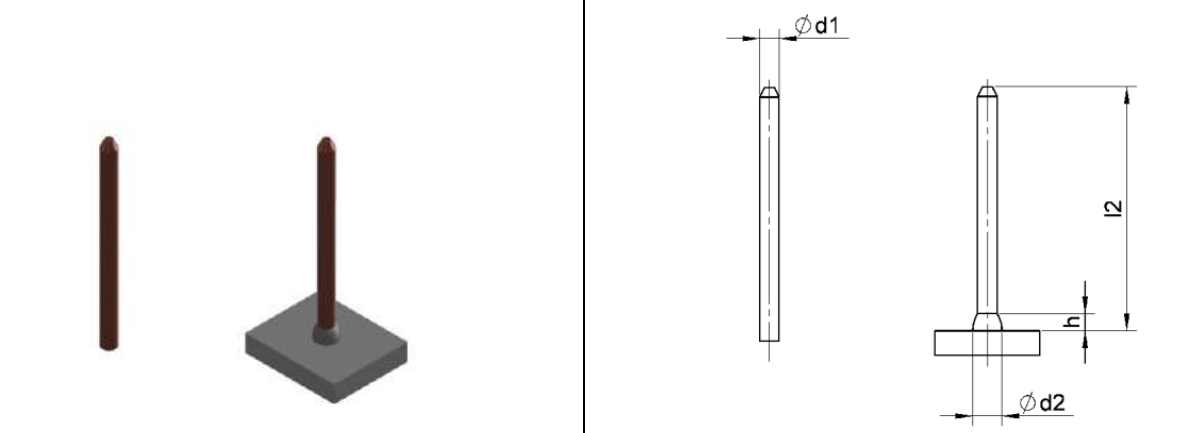

ISA – Ground point, one side

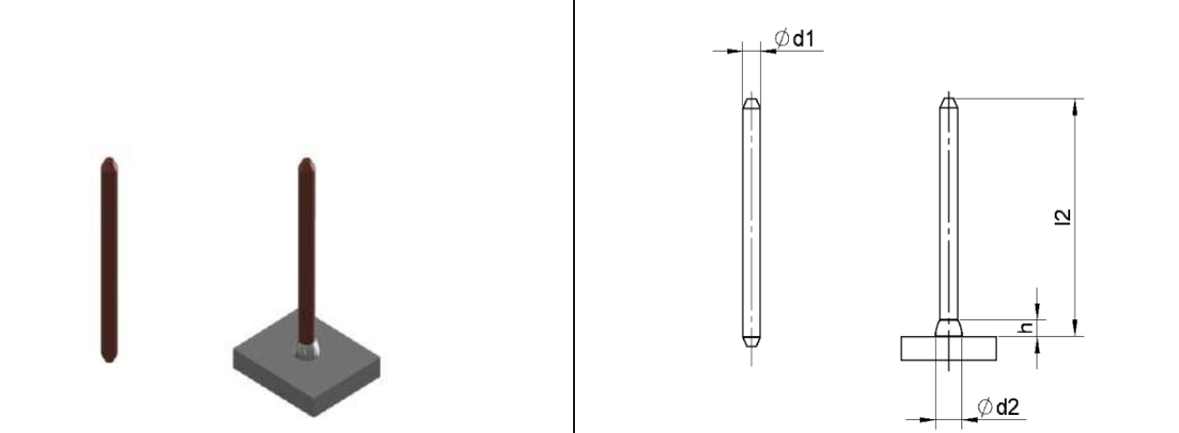

ISB – Ground point, both sides

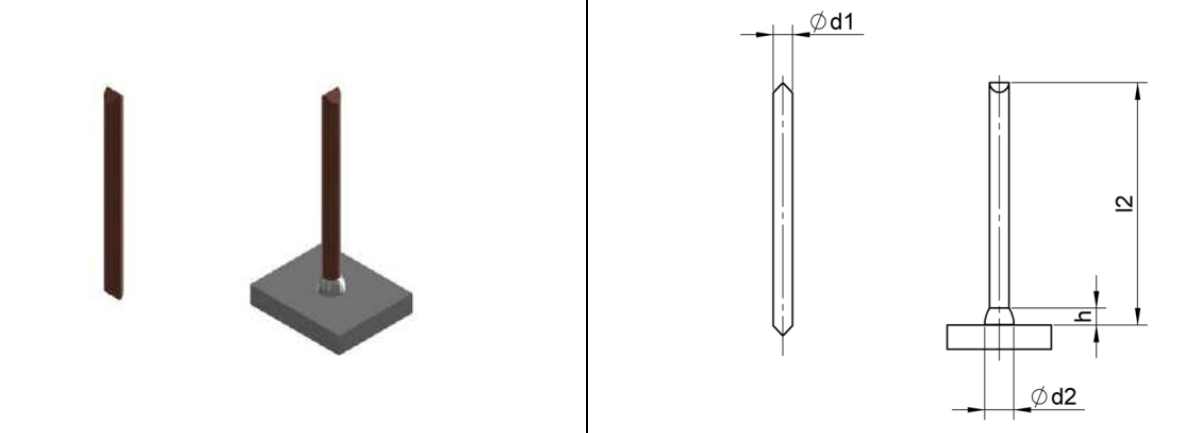

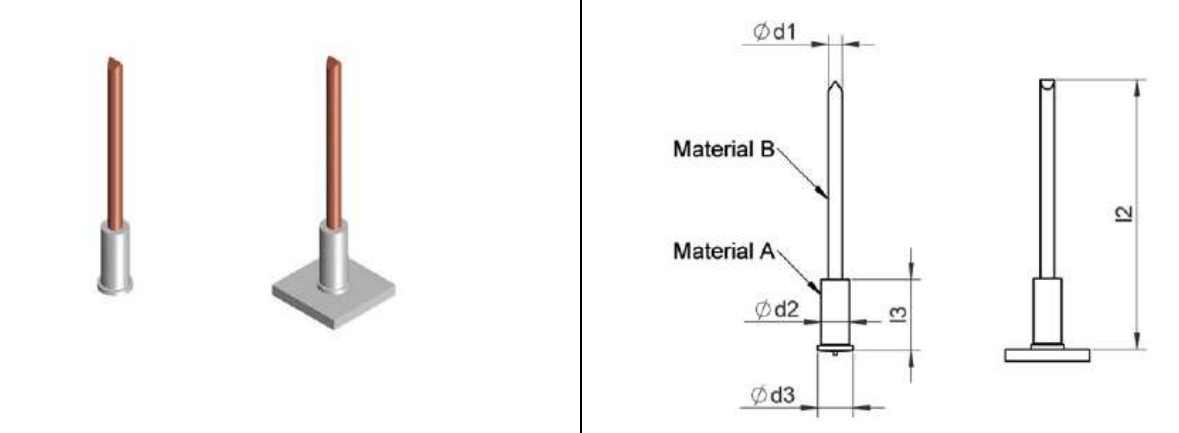

VBS-MS – Bimetallic chisel point
VBS – Bimetallic ground point

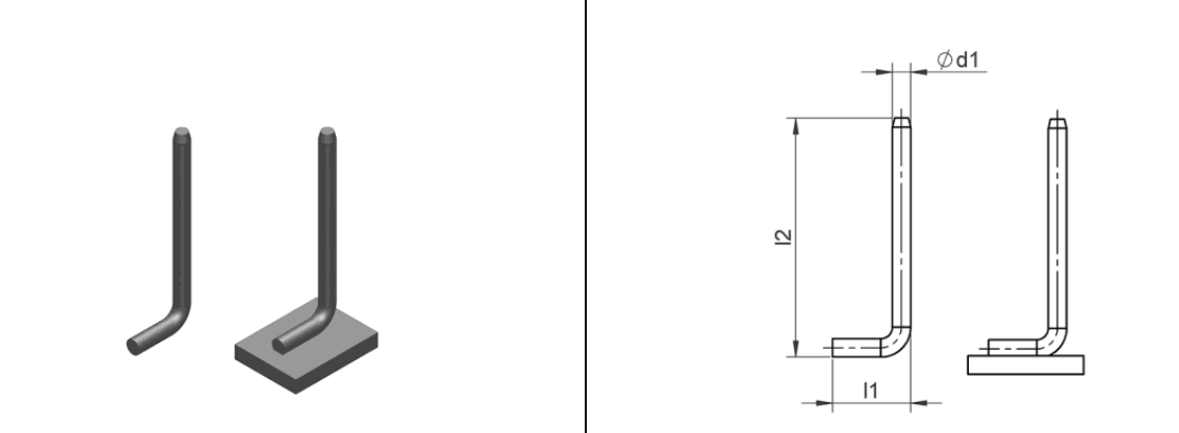

ISH – Angled, manual welding

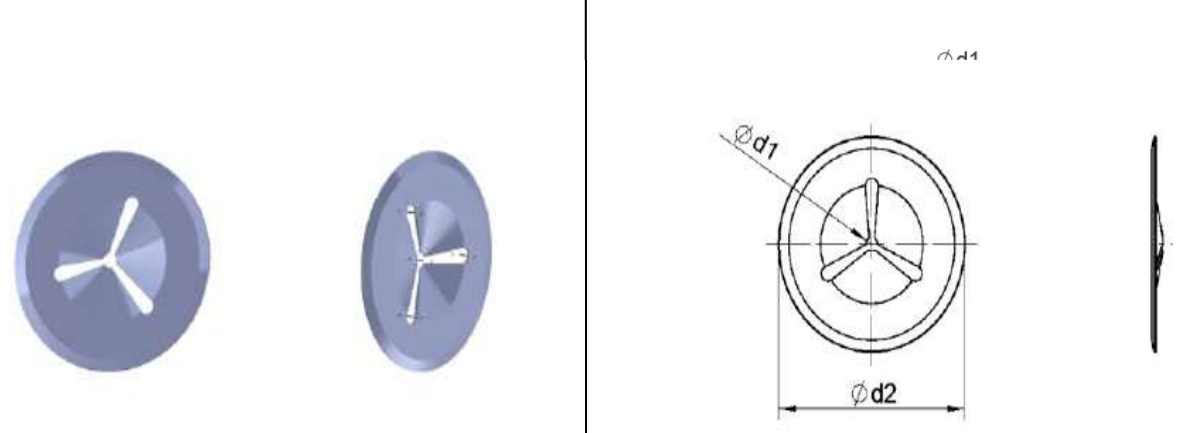

Type R clip – Metal

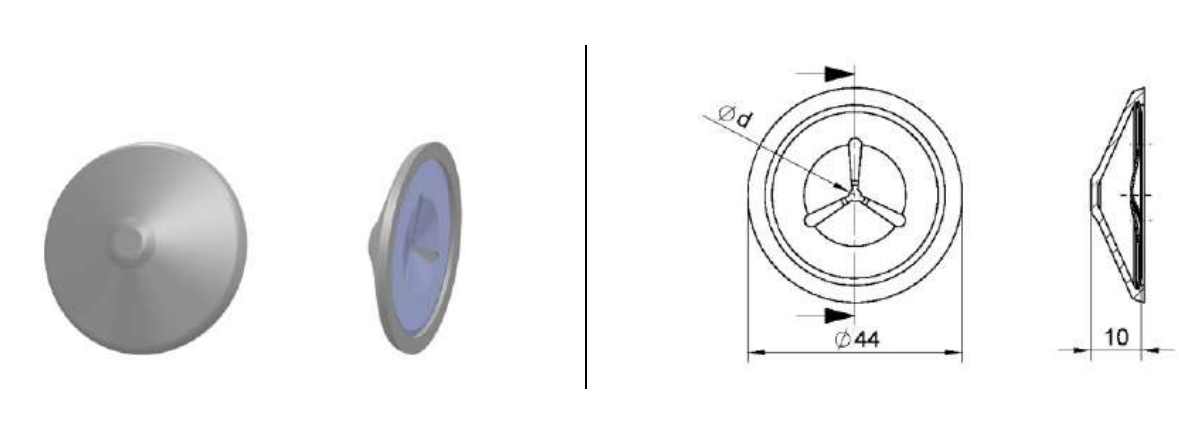

Type W clip – Plastic cap
What are insulation pins and clips?
BEARFIX® insulation pins are fastening elements specifically designed to secure insulation materials such as mineral wool, rock wool and rigid foams to metal structures in industrial construction, shipbuilding, offshore and building applications.
The pins are welded to the base metal by drawn arc stud welding. The insulation is then pushed over the welded pin and retained by the corresponding clips.
Different pin configurations are available: chisel point, ground point, angled and bimetallic versions for aluminium structures.
Main characteristics
- No aluminium ball – no flux required.
- Normally welded without a ceramic ferrule; ferrules can be used for special applications.
- Chisel or ground point to facilitate penetration of the insulation.
- Corrosion-resistant materials including copper-plated steel and stainless steels.
- Retention clips – Type R metal clips and Type W clips with plastic cap.
Main applications
- Thermal insulation of pipes, boilers, tanks and heat exchangers
- Acoustic insulation of machine rooms and industrial buildings
- Shipbuilding and offshore insulation
- Industrial façades, roofs and cold rooms
- Chemical plants and refineries
Ordering information
When ordering insulation pins and clips, specify the pin type, material, diameter, length and the corresponding clip type and size.
BEARFIX® – Fastening and welding solutions for engineering.
