UT CD2 studs are unthreaded studs designed for capacitor discharge welding processes. This fastening method joins metal components directly to sheet metal or conductive surfaces without drilling the material, producing a fast, clean and strong joint.
UT is the designation for an unthreaded (plain) stud according to DIN EN ISO 13918, while CD2 is the classification commonly used in capacitor discharge welding systems. Both terms refer to the same type of plain stud prepared for CD welding.
Thanks to the speed of the process—approximately 2 to 3 milliseconds—UT CD2 studs are particularly suitable for thin sheet metal where thermal distortion and marks on the reverse side of the workpiece must be minimised.
Features of UT / CD2 studs
As an unthreaded stud, it is an ideal solution for applications requiring a simple, strong and permanent fastening. The low heat input of the process also makes it possible to work on thin sheet metal while minimising distortion and visible marks on the workpiece.
UT CD2 studs provide fast and accurate capacitor discharge welding.

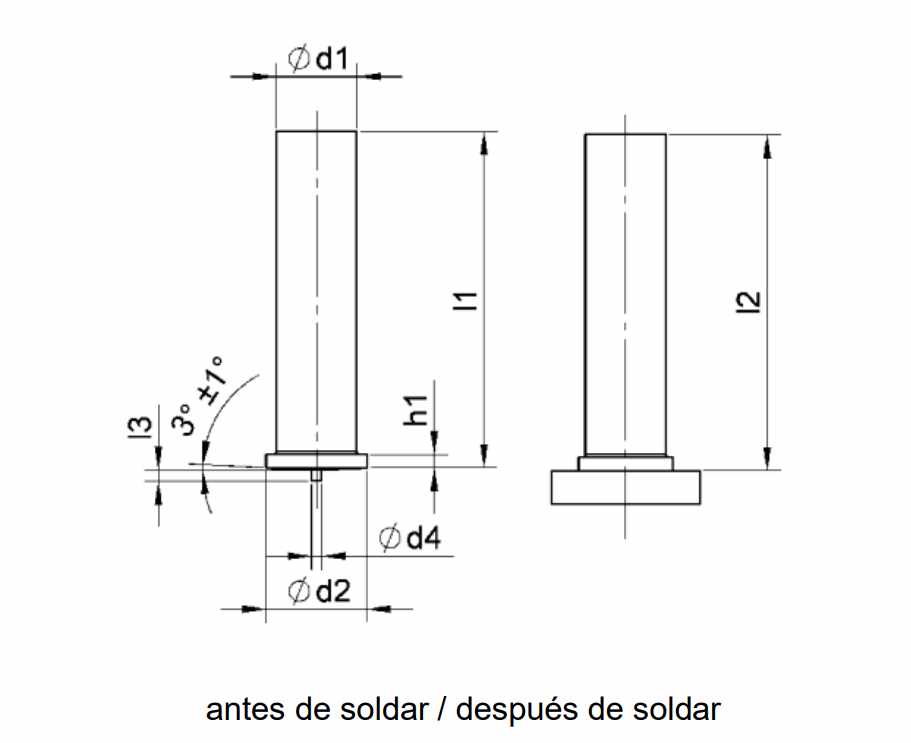

They incorporate a calibrated ignition tip and a cold-formed flange that stabilise the electric arc during discharge and ensure a uniform joint with the base material.
The flange also plays a fundamental role during welding: it prevents arc displacement and increases the effective joining surface, thereby improving final mechanical strength and process repeatability.
Available materials
UT CD2 studs can be manufactured in different materials according to the industrial application and working environment.
| Material | Features |
|---|---|
| Copper-plated 4.8 steel | Excellent weldability |
| A2-50 stainless steel | Corrosion resistance |
| 1.4571 stainless steel | Aggressive environments |
| AlMg3 aluminium | Lightweight applications |
| CuZn37 brass | Special technical applications |
All materials comply with DIN EN ISO 13918 and DIN EN ISO 14555.
Available standard sizes
UT CD2 models are manufactured in different diameters and lengths.
| Diameter | Available length |
|---|---|
| Ø3 | 6 – 30 mm |
| Ø4 | 6 – 40 mm |
| Ø5 | 6 – 45 mm |
| Ø6 | 8 – 60 mm |
| Ø7.1 | 10 – 60 mm |
| Ø8 | 10 – 40 mm |
Special sizes are available on request.
Bearfix UT CD2 studs
Bearfix supplies UT CD2 studs, capacitor discharge welding equipment and a full range of accessories and consumables for industrial applications. You can also find our studs and consumables directly in the online store using the button below.
