CE compliant – Regulation (EU) No. 305/2011
Standard: DIN EN ISO 13918
Materials: Steel 4.8 / A2-50 / 1.4571

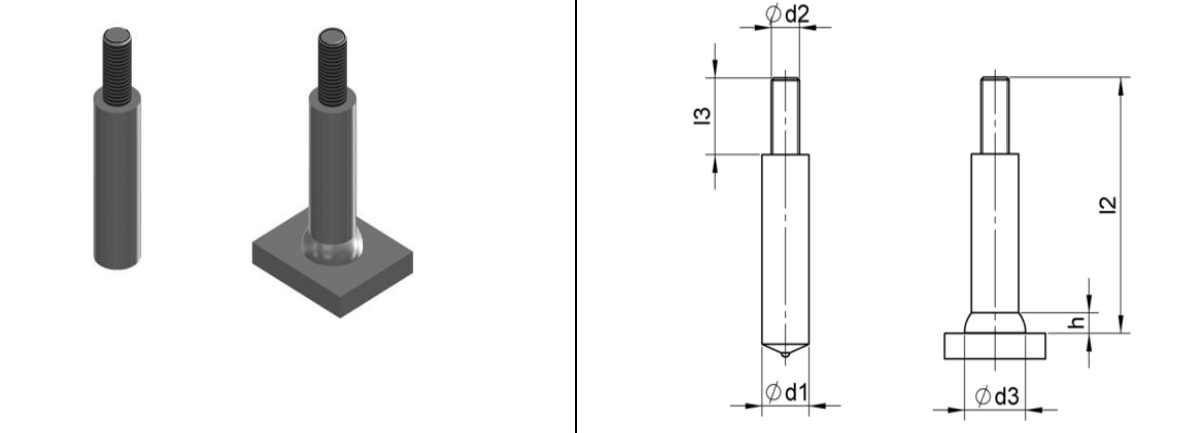

Design: Stepped diameters in a single stud
Product description
The BEARFIX® stepped stud incorporates different diameters in one welded fastening element. It is designed for drawn arc welding with ceramic ferrule and is useful where positioning, spacing or component interfaces require multiple diameters.
Main applications
Machinery, positioning systems, special supports and assemblies with different interface diameters.
Technical advantages
- Designed for drawn arc stud welding with ceramic ferrule.
- Controlled geometry for repeatable industrial welding.
- Available in material configurations suitable for the intended environment.
- Special dimensions and variants can be supplied on request.
Standards and certificates
- CE marking according to Regulation (EU) No. 305/2011.
- DIN EN ISO 13918.
- DIN EN ISO 14555 – Stud welding.
- DIN EN 10204 inspection certificates on request.
Ordering information
When ordering, specify the required material, dimensions, geometry and quantity. Our technical team can help confirm the most suitable configuration for your application.
