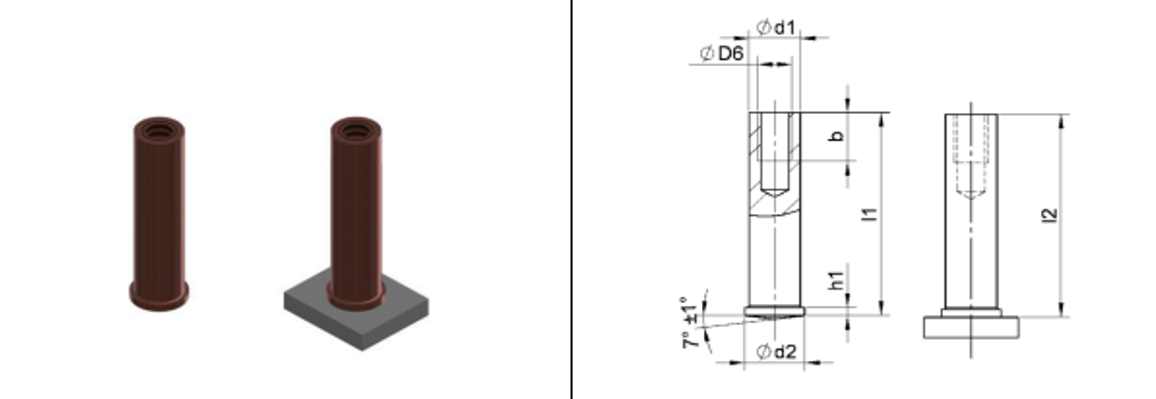

The type IS internally threaded stud is designed specifically for short-cycle welding (SC). It creates a permanent threaded fastening point on sheet metal without drilling or access to the reverse side of the component.
It is ideal for applications requiring a subsequent threaded connection, such as fastening components, brackets, housings or decorative elements to thin and medium-gauge sheet metal.
Main technical specifications
- Welding process: Short cycle – no shielding gas or ceramic ferrule required.
- Reference standard: DIN EN ISO 13918 (type IS)
- Available threads: M3, M4, M5 and M6 (other sizes on request)
- Standard materials:
- Copper-plated grade 4.8 steel (4–8 µm electrolytic copper finish)
- A2-50 stainless steel
- Weldability: Excellent
- Typical applications: Thin to medium-gauge sheet metal (0.8–3 mm)

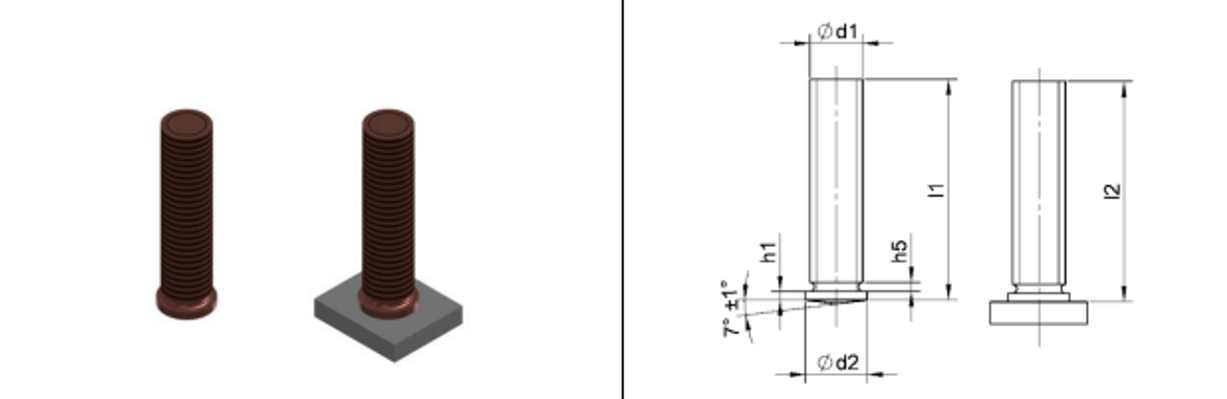

Dimension table
| Diameter (d1) | Length (l1) mm | Flange diameter (d2) mm | Flange height (h1) mm | Internal thread (D) | Available materials |
|---|---|---|---|---|---|
| 5 mm | 6 – 30 | 6.0 | 0.7 – 1.4 | M3 | Grade 4.8 steel / A2-50 |
| 6 mm | 8 – 40 | 7.0 | 0.7 – 1.4 | M4 | Grade 4.8 steel / A2-50 |
| 7.1 mm | 10 – 40 | 9.0 | 0.8 – 1.4 | M5 | Grade 4.8 steel / A2-50 |
| 8 mm | 15 – 40 | 9.0 | 0.8 – 1.4 | M6 | Grade 4.8 steel / A2-50 |
| Note: The length after welding (l2) depends on l1 and the welding parameters. | |||||
Common applications
The type IS internally threaded stud is suitable for many industrial sectors, including the automotive industry for fastening trim, sensors and interior components; domestic appliances for threaded anchor points in housings and panels; metal construction for threaded supports on profiles and sheet metal; and metal furniture for detachable joints in structures.
Compatible accessories
For PHM-10, GD 12sc and PHM-1A welding guns:
| Stud diameter (d1) | Stud length (l2) | Nut item no. |
|---|---|---|
| 5 mm / M3 | ≤ 40 mm / > 40 mm | 82-50-003 |
| 6 mm / M4 | ≤ 40 mm / > 40 mm | 82-50-004 |
| 7.1 mm / M5 | ≤ 40 mm / > 40 mm | 82-50-071 |
| 8 mm / M6 | ≤ 40 mm / > 40 mm | 82-50-006 |
| Special additional accessories are required for lengths over 40 mm. Please contact us. | ||
